Description

Specification

Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vice president-p, 1kΩ)
IP video input:8-ch

Network
Remote connection:128
Incoming bandwidth:80Mbps
Outgoing bandwidth:256Mbps

Video/Audio Output
HDMI Output:1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:8-ch
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Capability:4-ch@8MP,8-ch@1080P
Live view / Playback:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
SATA:2 SATA interfaces for 2 HDDs
Capacity:As much as 6TB capacity for each and every HDD

External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface:RS-232
USB Interface:Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:4-ch
Alarm Out:1-ch

POE
Supported Standard:AF and AT
Interface:8 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power:200W

General
Power Supply:100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):≤15 W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:380 chassis
Dimensions:380 × 290 ×45 mm (15.0″× 11.4″ × 1.8″)
Weight(without HDD):≤ 3 Kg (6.6 lb)

English original version ds-7608ni-i2/8p, Fortify upgrade . BEST SERVICE: Connect us team by email, reply within 12 hours; We will be able to give you the life-time and professional technical Fortify.

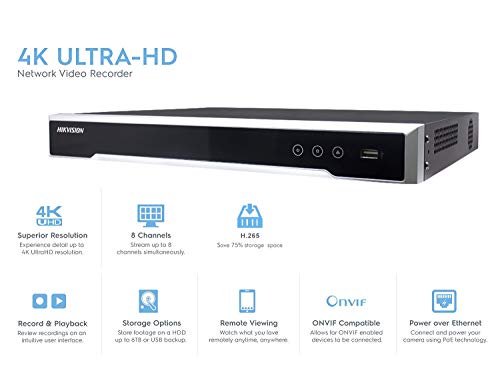

Embedded Plug & Play 4K 8 Channel PoE NVR with 2SATA Interfaces, As much as 6 TB capacity for each and every HDD (HDD Not included), Plug & Play with As much as 8 independent 10 /100 Mbps PoE Ethernet interfaces
As much as 12 Megapixels Resolution Recording and Playback, Fortify 1-ch HDMI, 1-ch VGA, HMDI As much as 4K(3840×2160) Resolution, Fortify Two Way Audio and Alarm in/Out.
New logical and visualized GUI design NVR 4.0, Fortify dual-os to verify high reliablility of system running, ANR technology to improve the storage reliability when the network is disconnected
Fortify quite a lot of VCA detection alarm and VCA search. real-time, highly reliable HD video without loss or delay, Smart H.265+ technology reduces bit rate and storage requirements by As much as 70% when in comparison to standard H.265 video compression
