Description

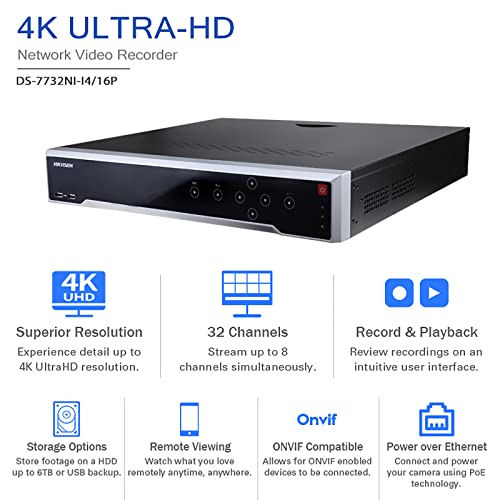

NVR Model: DS-7732NI-I4/16P

All products sold by Eugene Gus come with a 100% Satisfaction Guarantee – we provide a 30-day money-back guarantee, in addition to a 3 year warranty that covers replacement at no cost.

Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vice chairman-p, 1kΩ)
IP video input:32-ch

Network
Remote connection:128
Incoming bandwidth:256Mbps
Outgoing bandwidth:256Mbps

Video/Audio Output
HDMI Output:1-ch, resolution: 4K(3840*2160)/60Hz,
4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz,
1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:16-ch
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Capability:4-ch@8MP,16-ch@1080P
Liveview/Playback:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
SATA:4 SATA interfaces for 4 HDDs
Capacity:As much as 6TB capacity for each and every HDD

External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface:RS-232，RS-485
USB Interface:Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:16-ch
Alarm Out:4-ch

POE
Supported Usual:AF and AT
Interface:24 independent 10/100 Mbps PoE Ethernet interfaces Max. Power:200W

General
Power Supply:100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):≤20 W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:380 chassis
Dimensions:445x390x70mm(17.5″× 15.8″ × 2.8″)
Weight(without HDD):≤ 5Kg (11 lb)

>This 4K DS-7732NI-I4/16P is a professional Plug & Play NVR with As much as a hugely impressive 12MP resolution recording capability
>4K HDMI output enables connection to 4k TV/Monitors. It offers 16x PoE ports and a Gigabit LAN port, providing As much as 160Mbps incoming bandwidth and 256Mbps outgoing bandwidth
>Plug-N-Play with As much as 16 network interfaces. As much as 4 SATA interfaces; Make stronger dual-os to verify high reliablility of system running; Make stronger more than a few VCA detection alarm and VCA search
>As much as 6TB capacity for each and every HDD, Make stronger more than a few VCA detection alarm and VCA search ,Make stronger 1-ch HDMI, 1-ch VGA, HMDI at As much as 4K(3840×2160) Resolution
